Baifu Double Diaphragm pump

No.

DDP

Intro.

Advantages of pneumatic diaphragm pumps：

No sparks are generated during operation, making it suitable for workplaces with high safety requirements.
The pump operates with compressed air and can be used in hazardous areas where electric power supply is not suitable.
With no complicated wiring and no electrical controls, the air-operated diaphragm pump is easy to install and operate.
Even when running dry without paint, the pump will not cause mechanical damage or industrial accidents.
The air-operated diaphragm pump is suitable for transferring both low-viscosity and high-viscosity fluids, meeting multi-purpose requirements.
It can handle abrasive fluids as well as materials containing solid particles or powders.
With no moving parts such as gears or impellers, it avoids shear forces that may damage the characteristics of the fluid medium.
Quick-connect air spray gun for spraying NC paint and PU paint.
Used in roller coaters and curtain coaters for the transfer of special UV paint.

Specification

Baifu Model	1.068	1.288	1.1300
Generic model	A10	A26	A31
Max. flow rate (L/Min)	10	39	112
Max. working pressure (kg/cm²)	7	10	10
Max. air consumption(NL/min)	120	350	1125
Inlet dia.(inch)	3/8	6/8	1
Outlet dia.(inch)	3/8	6/8	1
Displacement/cycle(cc)	68	288	1300
Start-up pressure.(kg/cm²)	1.2	1.2	1.2
Operation pressure(kg/cm²)	2 ~5	2 ~5	2 ~5
Application	Spray gun 1	Automatic spray gun 8~12	Transfer,mold releasing agent
Standard setting	With bracket,suction hose	With bracket, suction hose.	Bare pump
For solvent base paint. Aluminum alloy body	A1.068	A1.288	A1.1300


For water base paint. Fiber-reinforced nylon body	N1.068	N1.288


For acid base paint Stainless steel body	S1.068	S1.288	S1.1300

Full assembly：

A1.068

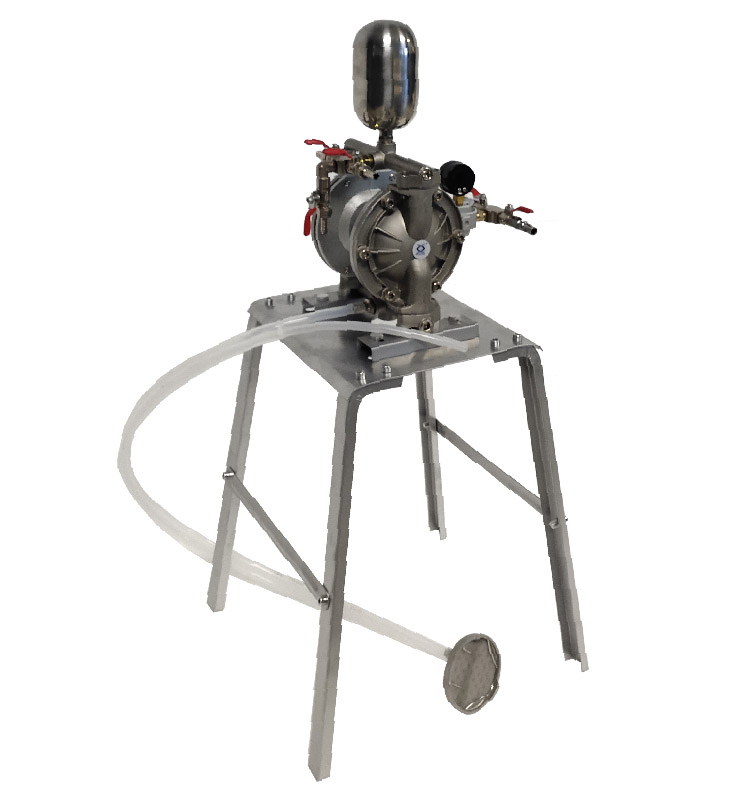

S1.068

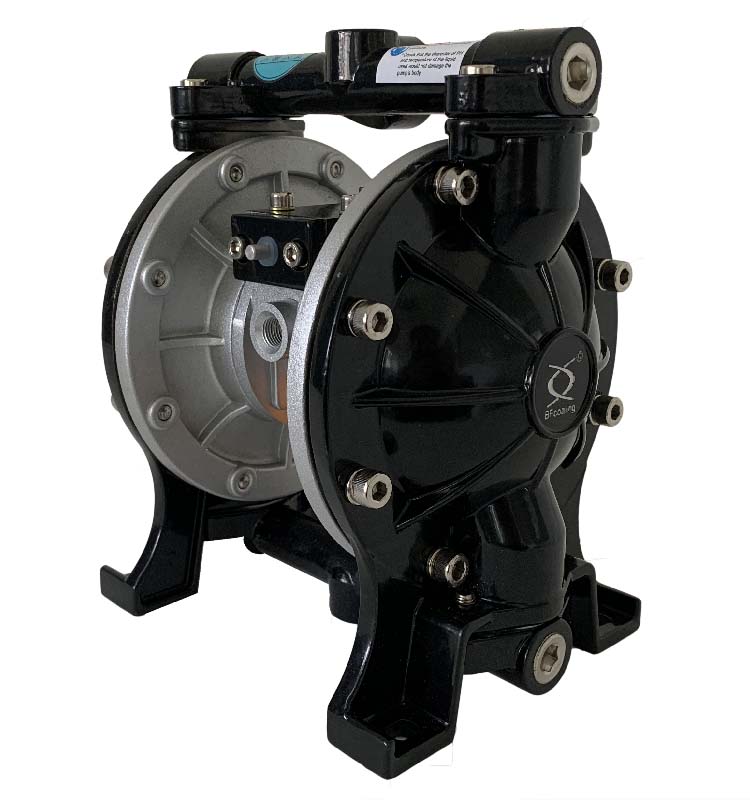

A1.288

N1.288

S1.288

Bare Pump：

A1.068

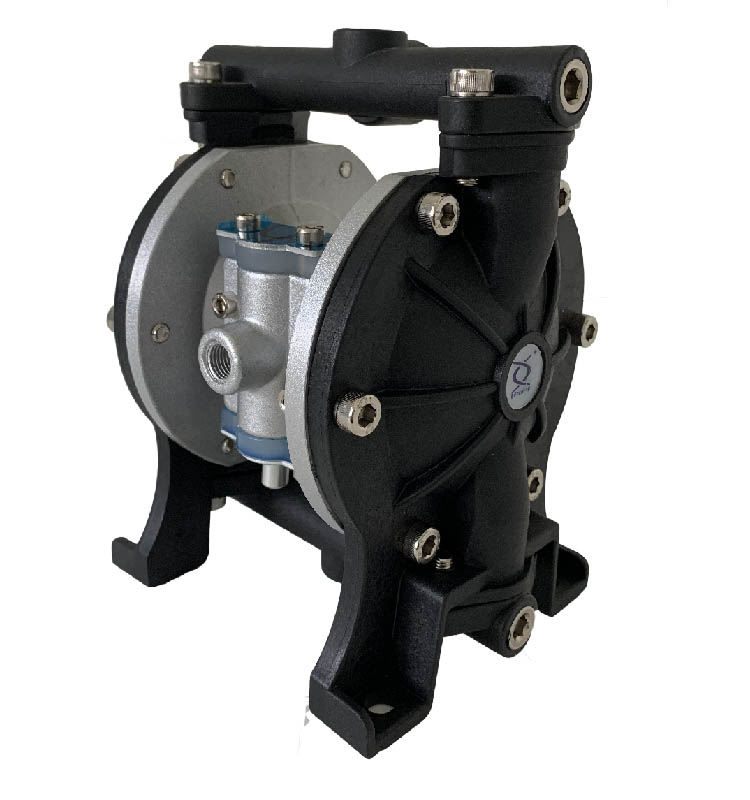

N1.068

S1.068

A1.288

N1.288

S1.288

A1.1300

S1.130
