XR5 Character & Unique design

• One-key switch dual electrostatic charging mode system; Invention patent "Zone Power Auto Control" with constant current spraying Invention patent "Controllable Minimum Holding Power" -
• Complex Deep Groove Powder Electrostatic Spraying Technology.
• Max. electrostatic voltage 110KV and controllable smaller electrostatic current, achieving optimal transfer efficiency and surface quality.\
•  Each controller adopts 485/Modbus RTU bus connection for data communication.。
•  Centralized control function of the controller when spraying with multiple guns, allowing setting one or multiple controllers as the main controller.
• In cases of multiple automatic guns, adjust the spraying parameters of the main controller, and the parameters of other secondary controller change synchronously.。
• Each gun is equipped with 3 pcs small electronic proportional valves for precise adjustment air pressure of powder, atomization and cleaning.
• Spray receipts setting and storage function (60 programs in total), accessible at any time.
• Press the AUTO key when manually spraying at a closer range, the powder flow rate automatically reduces, and it increases automatically when spraying at a far distance.
• Press the cleaning key, high voltage automatically shuts down, and the air electronic proportional valve opens to the maximum for cleaning the inside of the powder pump,powder hose and automatic gun.
• Press the back spray key to enter the back spray mode, and adjustments to various parameters can also be made through adjustment keys.

Advantage of XR5 controller

• Automatically control the voltage and current of the charging power area
• The spray gun automatically adjusts low voltage and current at short distances, high voltage and current at long distances. And good spraying results for complex parts and large boards.
• Through the setting of μA value, on different workpieces and different powders, multiple groups of spraying methods can be recalled from memory, whichcan better optimize the effect of spraying.
• Automatically change the electrostatic voltage and current of spraying, reduce the amount of excess charge during electrostatic spraying operation, thus effectively overcoming the "Faraday electrostatic shielding phenomenon" and "reverse ionization" phenomenon in electrostatic spraying operation, and improve product surface quality and T/E , saving production cost.

Specification

Model	XR-5m	XR-5a	XR-5aq
Product	Manual spray gun	Automatic spray gun	Quick color change Automatic spray gun
Electrostatic voltage output	0~110kV Negative HV cascade/(Special: positive HV cadcade)
Electrostatic current output	0~100µA
Powder output	50~250g/min.(The performance varies depending on different pump, inner diameter, and length of powder tube.)
Compatible controller	XR5-GCU
Power supply	DC13.5V
Dimension L*W*Hmm	325*30*92	390*30*45	390*30*45
Gun weight	495g	460g	460g

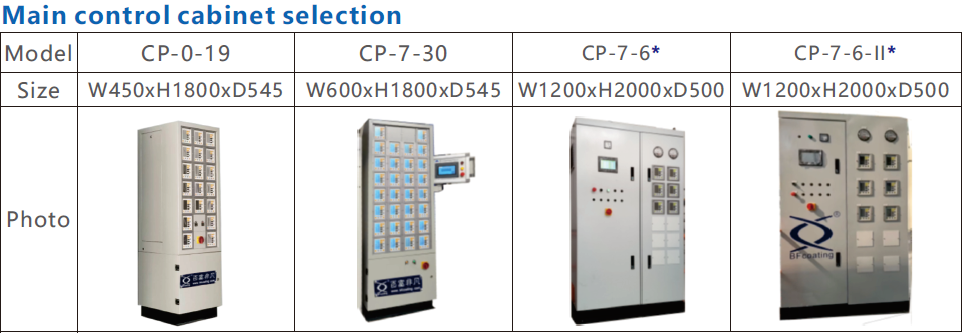

Central control cabinet

545Lx600Wx1800H
