High-speed color change can be achieved within 10 minutes New powder color change system

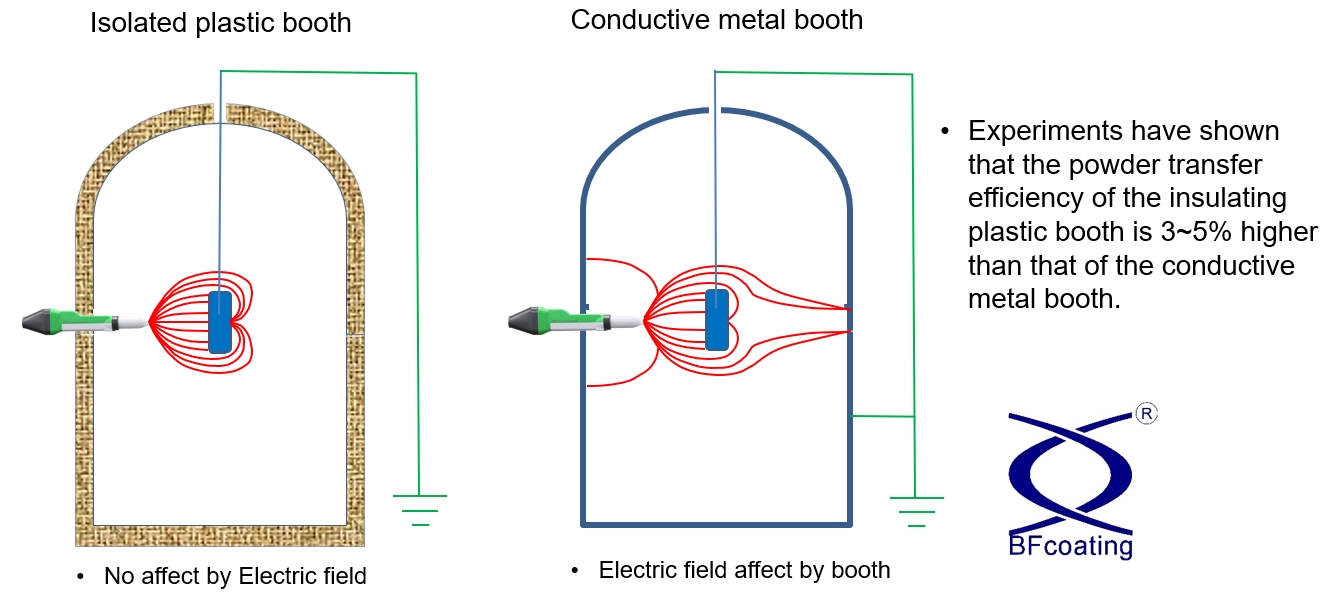

Advantages of Plastic Booth in quick color changing
High coating efficiencyBecause the plastic insulation board is used, the charged flying powder repels the wall panels of the same polarity, and attracts the coated objects of different polarities.
Quick color change
Because the plastic insulation board is used, the charged flying powder is repelled by the wall panel of the same polarity, and the powder sticks to the wall panel and needs to be removed less.
Less powder accumulation at the bottom and high yield
There is a powder blowing jet at the bottom of the spray booth, which continuously moves the powder to the air suction port to prevent powder from accumulating at the bottom and causing inconsistent coating quality between re-used and fresh powder.
Good strength and high safety
Made of plastic sandwich board wall thickness of 120mm, it does not change shape and is strong and durable.
Powder recovery efficiency can be as high as 98%
Use advanced large cyclone technology and unique secondary separation design
Optional spray gun cleaning device
Special air nozzle design, automatic gun body external cleaning
The Principle of Cyclone Recovery Booth
Powder recovery booth
Color change time of PVC booth is shortened!
Cleaning time is reduced!
| Down suction large cyclone recovery booth | ||||
| Model | LCB-P | LCB-S | ||
| Main body material | PVC | SUS | ||
| powder supply device | Powder supply tank/powder supply center/addition feeding tank | |||
| Bottom design | Surge Blow/Flip | |||
| Cyclon specification CR | 800 | 1100 | 1300 | 1400 |
| Back Filter Unit BFU | 6—12 | 9—18 | 12—24 | 12—24 |
| Max. air flow rate m3/hr | 10,000 | 14,000 | 20,000 | 24,000 |
*Application: Frequent color change, and more than 4 colors.
LCB Large cyclone recovery booth
| Small cyclone recovery booth | ||||
| Model | MCB-P | MCB-S | ||
| Main body material | PVC | SUS | ||
| powder supply device | Powder supply tank/powder supply center/addition feeding tank | |||
| Bottom design | Surge Blow/Flip | |||
| Cyclon specification CR | 6 | 9 | 12 | 16 |
| Back Filter Unit BFU | 6—12 | 9—18 | 18—24 | 24—32 |
| Max. air flow rate m3/hr | 10,000 | 14,000 | 20,000 | 24,000 |
*Application: Frequent color change, and more than 4 colors.
*Advantages: Applicable when the height of the factory building is limited
MCB Small cyclone recovery booth
| Single stage recovery booth | |||
| Model | FRS-P | FRS-S | |
| Main body material | PVC | SUS | |
| powder supply device | Powder supply tank/powder supply center/addition feeding tank | ||
| Bottom design | Surge Blow/Flip | ||
| Back Filter Unit BFU | 6—12 | 9—18 | 18—24 |
| Max. air flow rate m3/hr | 10,000 | 14,000 | 20,000 |
*Application: Infrequent color change, when changing color, you can add color cartridge and powder tank, and use less than 4 colors.
*Advantages: The cost of investment introduction is low.
FRS Single stage recovery booth
Powder Recovery Unit
| Description | Single stage filter | 2nd stage filter | Multi-cyclone, 1st stage recovery unit | Large-cyclone, 1st stage recovery unit |
| Model | FU (Filter Unit) | BFU (Back Filter Unit) | MCU (Multi Cyclone) | CRU (Cyclone Recovery) |
 |  |  |  | |
| Material | A3 steel panel, coated filter | A3 steel panel, Optional stainless steel | ||
| Specification | 6 sets-12 、9sets-18、 12sets-24 | 6sets-12、9sets-18、 12sets-24,16sets-32 | 6 tubes、9 tubes、12 tubes、16 tubes | Diameter 800, 1100, 1300,1400mm |
| Air volume m3/Hr | 8~10,000, 12~15,000, 16~20,000 | 8~10,000,11~14,000, 15~20,000, 24~28,000 | 8~10,000,11~12,000, 12~16,000,12~16,000 | 8~9,000,10~13,000, 18~22,000, 22~26,000 |
| Use occation | No color change, or less color | As 2nd recovery for cyclone | Need color change, but less plant height | Frequent color change |
＊The height of one filter core is 660mm, and the upper and lower two filter cores form a set, with a height of 1300mm. 6-12: 6 sets of 12 filter cartridges. Tubes = number of multi-cyclone tubes. 800=diameter mm
供粉Classification of Powder Supply Unit
| PF Powder feeder | PFCPowder feeding center | PPT Powder Plenish tank) | |
 |  |  | |
| Tank Material | Stainless | A3 panel | A3 panel |
| Bucket volume(liter) | 150 | 120 | 250 |
| Sifing M/C | 1 PC | 1 PC，Optional 1 | |
| Color change cleaning | Auto clean tube | ||
| HMI | No. | HMI | |
| Gun quantity available | Max. 20 hole for powder suction unit | Max. 40 hole for powder suction unit | |
| Use occation | No color change, or less color | Frequent color change |
*Gun quantity should be decided in the order sheet.
Classification of Powder Coating Reciprocator
| Description | Oscillator | Reciprocator | 2 D Tracking Oscillator | Constant Speed Reciprocator |
|  |
|  | |
| Model | OSL | VR | OSL-T | VRF |
| Material | A3 panel | A3 panel | A3 panel | A3 panel |
| Stroke mm | 250~450 | Max. 1800/2200 | up/down 500, back & forth 500 | 1000, 1500, 2000, 2500 |
| Speed | 9~30 cycles/min. | ~45 m/min. | 9~40cycles/min. | ~60m/min. |
| Speed adjust | Inverter | Inverter | Inverter | Inverter |
| Base | Manual back & forth | Manual back & forth | Auto back & forth | Manual back & forth |
| Use occasion | No color change or less color | Need color change, but less plant height | Frequent color change | up/middle/low thickness difference 15µ request |
