The BPS‑series is an external‑mount high‑voltage generator. High‑voltage is generated directly inside the unit and delivered to automatic spray guns and rotary‑bell atomizers via high‑voltage cables. Compatible with both solvent‑borne and water‑borne coating systems, it provides a wide selection of voltage‑and‑current specifications.
Specification

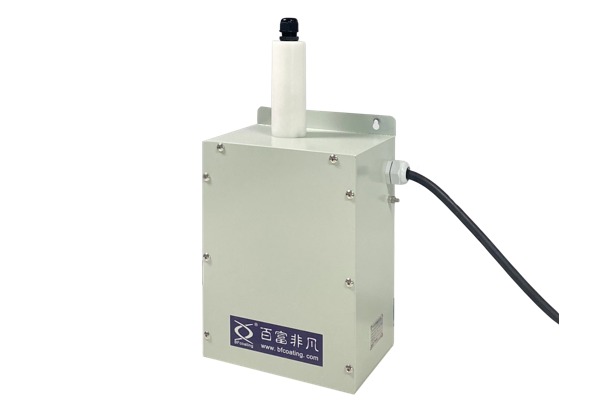

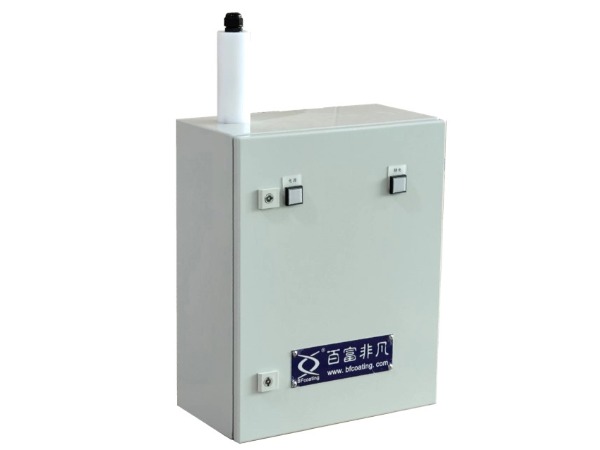

Model | BPS90 External High‑Voltage | BPS 100 External High‑Voltage | BPS 150 External High‑Voltage‑Multi‑gun | |||
Solvent‑based Paint | Water‑based Paint | Solvent‑based Paint | Water‑based Paint | Solvent‑based Paint | Water‑based Paint | |
Picture |
|  |
| |||
Fixed Output Voltage | 70KV Negative Polarity | 70Kv Negative Polarity | 100KV Negative Polarity | 100Kv Negative Polarity | 100KV Negative Polarity | 100Kv Negative Polarity |
Fixed Output Current | 125µA | 150µA | 125µA | 250µA | 125µA | 500µA |
Display & Setting | Voltage & Current display and setting via HMI or E‑Box | Voltage & Current display and setting via HMI or E‑Box | Voltage & Current setting via HMI | |||
Constant‑voltage Output | Auto‑ramp‑up, constant‑voltage output, excellent electrostatic wrapping performance | Auto‑ramp‑up, constant‑voltage output, excellent electrostatic wrapping performance | Auto‑ramp‑up, constant‑voltage output, excellent electrostatic wrapping performance | |||
Safety & Fold‑back Circuit | With safety circuit | With safety circuit, optional fold‑back circuit (Ground‑fault current halved, no spark) | With safety circuit, optional fold‑back circuit (Ground‑fault current halved, no spark) | |||
Fixed Input Voltage | 220V, 50/60 Hz | |||||
Power Consumption | Max.66W | Max.88W | ||||
Protection Rating | IP 55 | |||||
Generator Dimension (L × D × H) | Approx. 400x210x690mm | Approx. 400x210x690mm | Approx. 245x162x530 mm | |||
Weight | Approx. 15.7kg | Approx. 15.7kg | Approx. 9.85kg | |||
Radiation Grade | FN Low‑radiation, Low‑noise, Low‑EMI | FN Low‑radiation, Low‑noise, Low‑EMI | FN Low‑radiation, Low‑noise, Low‑EMI | |||
Fault Auto‑current Cut‑off | High‑speed sensing, customizable auto‑trip threshold | High‑speed sensing, customizable auto‑trip threshold | High‑speed sensing, customizable auto‑trip threshold | |||
Fault Handling | Over‑current & Over‑voltage alarm and trip‑off | Over‑current & Over‑voltage alarm and trip‑off | Over‑current & Over‑voltage alarm and trip‑off | |||
Operating Ambient Temperature | 0 - 45ﾟC | |||||
Applicable Spray Guns | LE20, LE30, RA20, RA30, RA31, RA36, RA10, RA12 | |||||

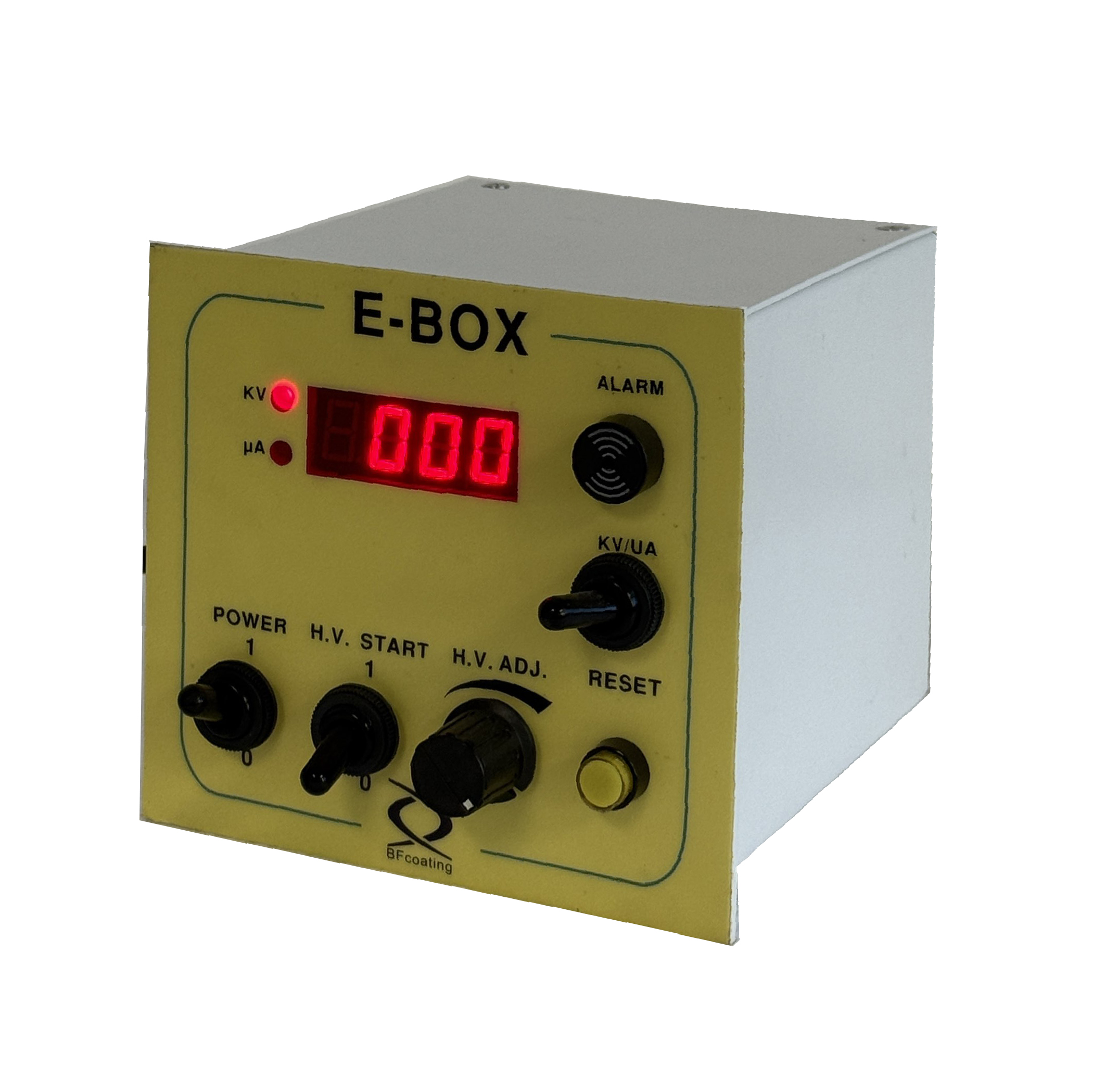

H.V. Electrostatic control box POWER
