The IPS‑Series is an internal high‑voltage control system dedicated to electrostatic spraying. It consists of three units: the display‑control box, high‑voltage power unit and the voltage‑multiplier module mounted on the spray gun.
Display‑control box or HMI: Displays high‑voltage value and electrostatic current, and adjusts high‑voltage output.
High‑voltage power unit: Power drive host, supplies high‑frequency low‑voltage power and implements safety‑protection functions.
Voltage‑multiplier module on spray gun: Final‑stage booster, which raises high‑frequency low‑voltage power to electrostatic high‑voltage of ‑60~‑75 KV.
Specification
Control Display Box | Electrical Box | ||
Model | IPS930C Built‑in High‑Voltage | IPS630E | IPS930E |

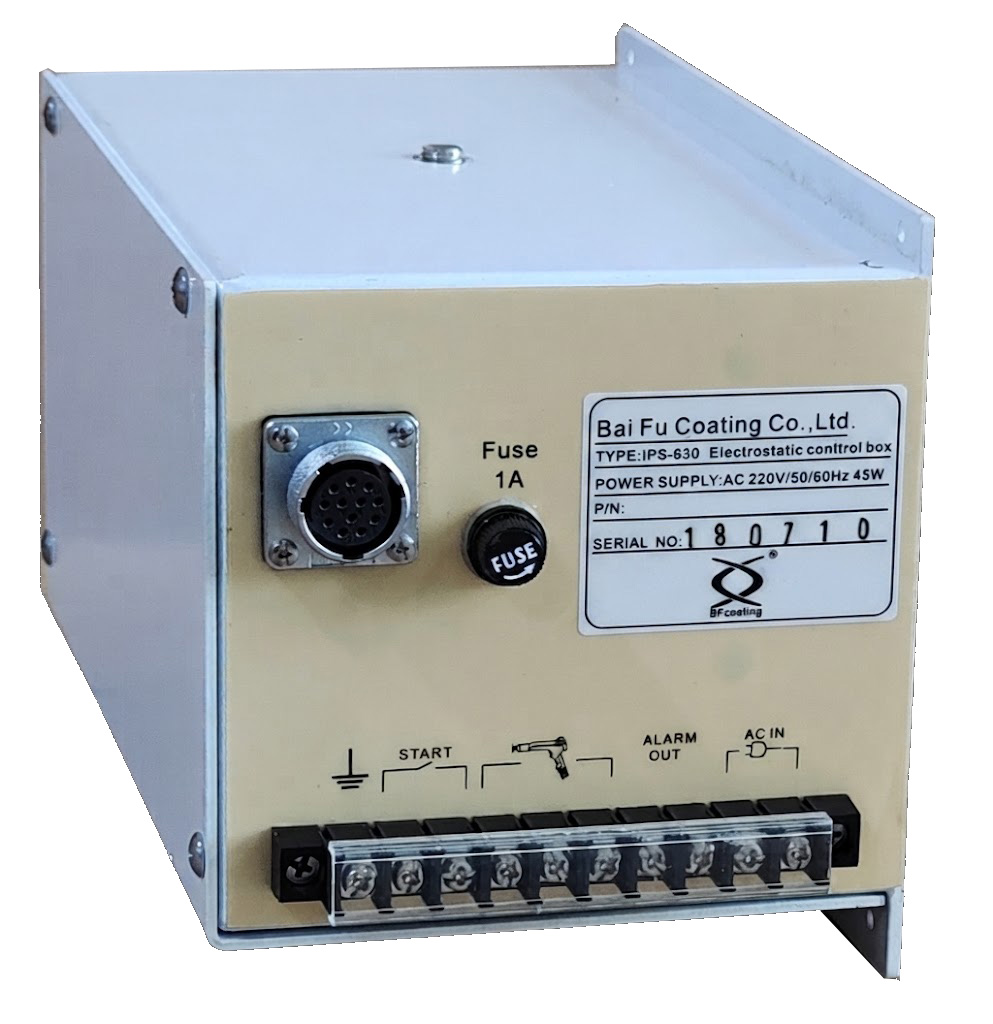

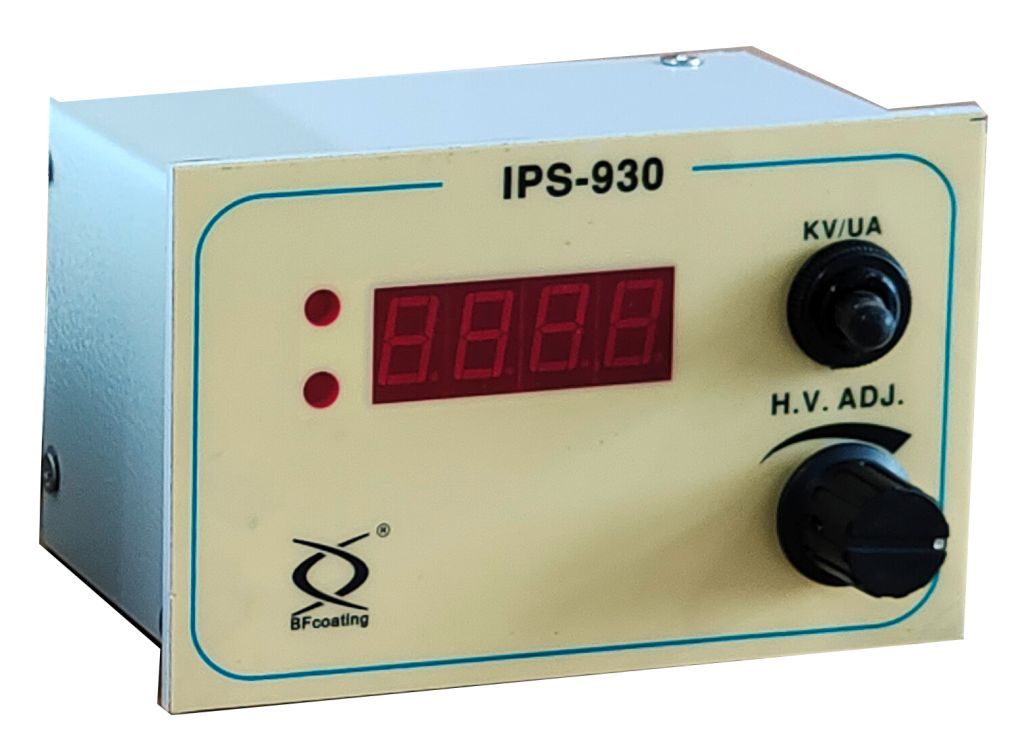

Picture |  |  |  |
Rated Input Voltage | AC18V，50/60Hz | 220V，50/60Hz | 220V，50/60Hz |
Power Consumption | Approx. 18W | Approx. 50 VA | Approx. 50 VA |
Rated Output Voltage | -60/-75KVNegative Polarity | -60KV, Direct gun‑mount output, no high‑voltage cable | -75KVNegative Polarity, Direct gun‑mount output, no high‑voltage cable |
Rated Output Current | Max. 110μA, Fine adjustable | Max. 80μA, Adjustable | Max. 100μA, Adjustable |
Unit Dimension(L × D × H ) | 140 × 90 × 90 mm | 130 × 240 × 140 mm | 130 × 240 × 140 mm |
Protection Class | IP54 | IP54 | IP54 |
Operating Ambient Temperature | 0～40℃ | 0～40℃ | 0～40℃ |
High‑voltage Module Weight | Approx. 96g | Approx. 4740g | Approx. 4740g |
Electronic Display | 3‑1/2 digit LED digital display, 0.56‑inch digit height | ||
Electrostatic Protection | Ground‑fault current trip protection | ||
Compatible Electrostatic Guns | LE11 | LE30, RA22, RA30, RA31,RA32 | |
| Control, Display | Universal for automatic guns with built‑in high‑voltage control display box | *Supports HMI control & display; IPS930C control display box is not required. | |
